Conwell Medical Co., Ltd.

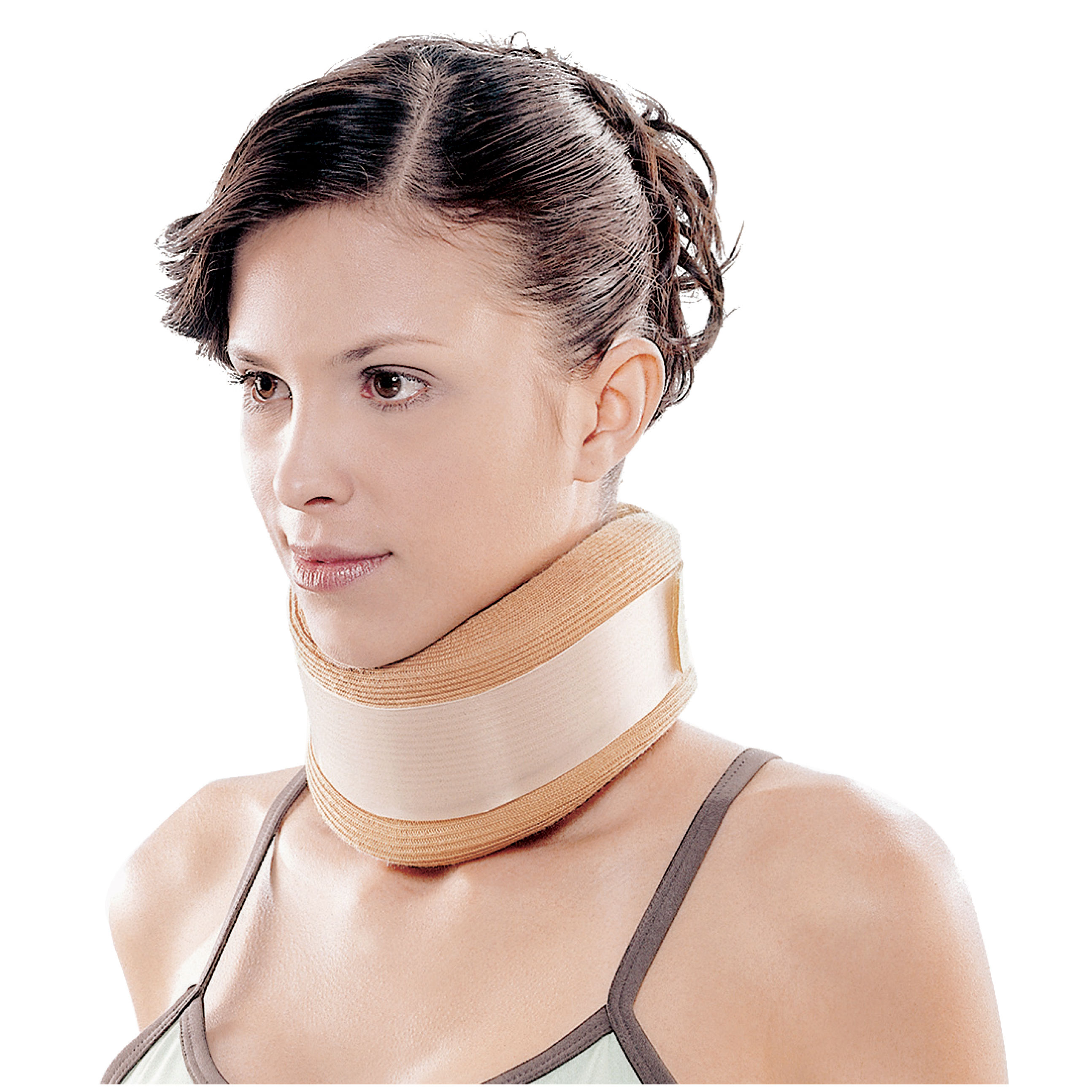

5102 CERVICAL COLLAR WITH PLASTIC INSERT

Indications

■ Stabilize neck
■ Support neck sprain

Features

■ Foam is covered with stockinet for maximum patient comfort.
■ Extra plastic pad provides firm support.
■ The plastic sheet can be dismantled and adjusted according to need.
■ Traditional low contour design maintains the head in a neutral position.
■ Hook and loop closure for ease of adjustment.
SizeS . M . L . XL . XXL

SIZE Neck Circumference Height
S             14 inch - 16 ½ inch              36 cm - 42 cm           3 ¼ inch
M             15 inch - 17 ¼ inch              38 cm - 44 cm           3 ½ inch
L             16 inch - 18 ½ inch              41 cm - 47 cm           3 ¾ inch
XL             17 ¼ inch - 19 ¾ inch          44 cm - 50 cm           3 ¾ inch
XXL             19 inch - 21 ¼ inch              48 cm - 54 cm           3 ¾ inch

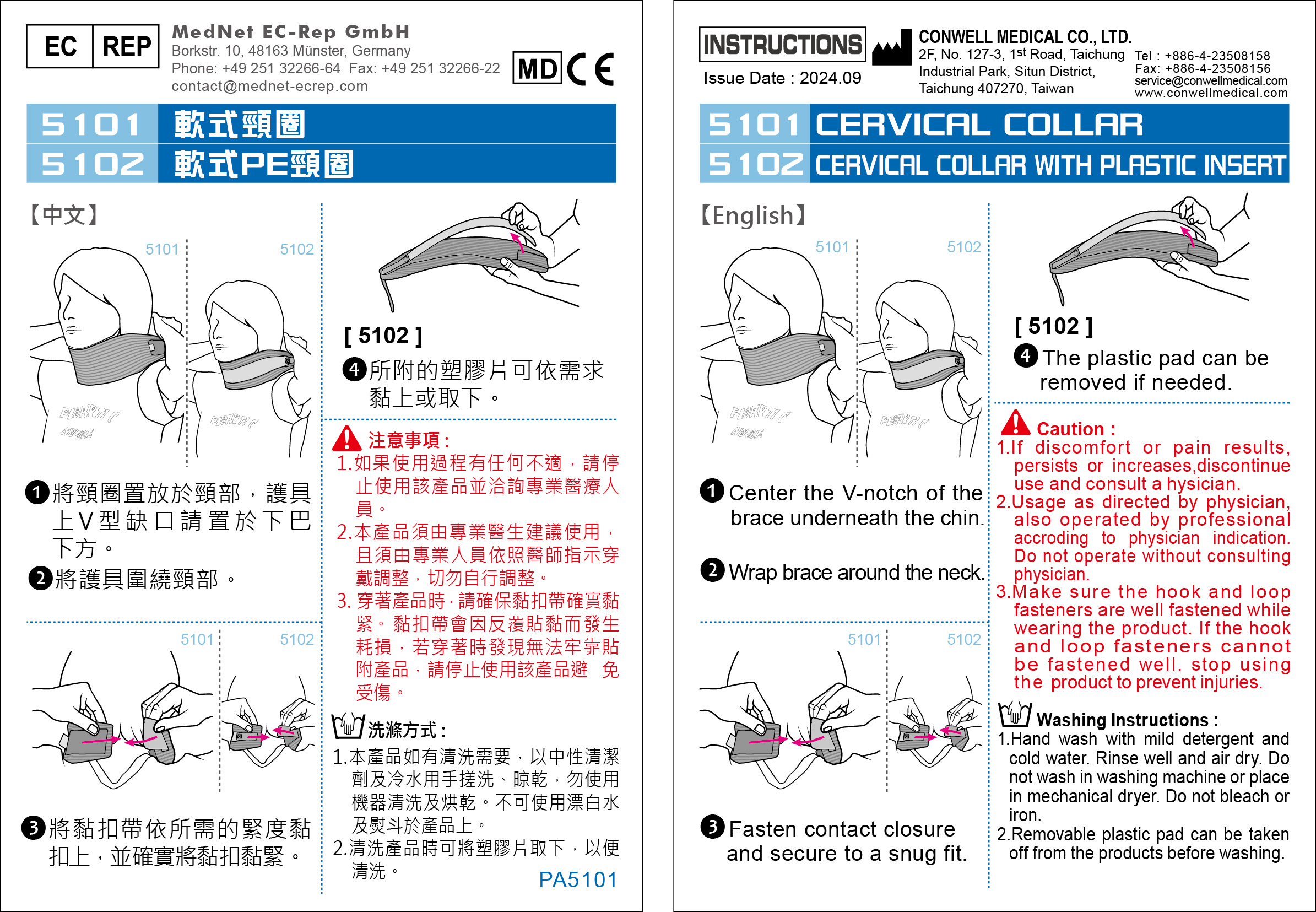

Product Instruction Manualor

THE CONWELL CERVICAL COLLAR WITH PLASTIC INSERT is used to provide support for the head and neck.


❶ Center the V-notch of the brace underneath the chin (Fig. A).

❷ Wrap brace around the neck.

❸ Fasten contact closure and secure to a snug fit (Fig. B).

❹ The plastic pad can be removed if needed (Fig. C).



Caution :

1.If discomfort or pain results, persists or increases,discontinue use and consult a hysician.

2.Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without consulting physician.

3.Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be fastened well. stop using the product to prevent injuries.


Washing Instructions :

1. Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing machine or place in mechanical dryer. Do not bleach nor iron.to clean the plastic & iron parts by rag.

2. Removable plastic pad can be taken off from the products before washing.
