Conwell Medical Co., Ltd.

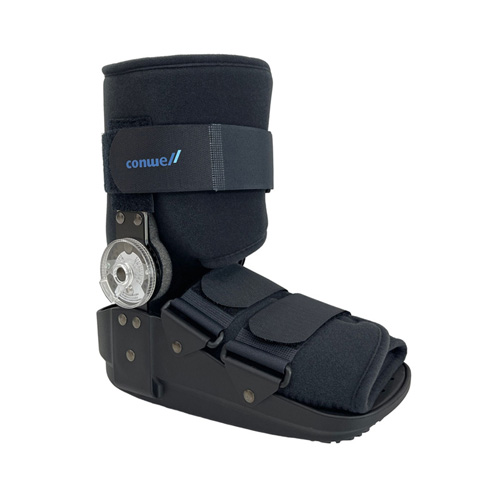

5908 ROM ANKLE WALKER (SHORT)

Indications

■ Following Achilles tendon repairs
■ Stable fractures of the lower leg and ankle
■ Acute ankle sprains
■ Post-op ankle surgery

Features

■ Shorter uprights provide comfortable stability.
■ Designed with a wider foot bed for comfort and stability.
■ Provides protected range-of-motion following trauma or surgery.
■ ROM settings between 0°~ 45° plantar-flexion and 0°~ 45°
   dorsi-flexion in 15° increments.
■ Plush soft-foam wrap for maximum comfort and easy to use.
■ Fits left or right foot.
Size S . M . L . XL

SIZE Max.
Foot Length
US Women's shoe US Men's shoe Euro shoe
S 25 cm          6 - 8.5           4.5 - 7 36 - 39
M 27.5 cm          9 - 11           7.5 - 10 40 - 43.5
L 30.5 cm          11.5 - 14.5           10.5 - 13 44 - 47
XL 34 cm           > 14.5            > 13 > 47

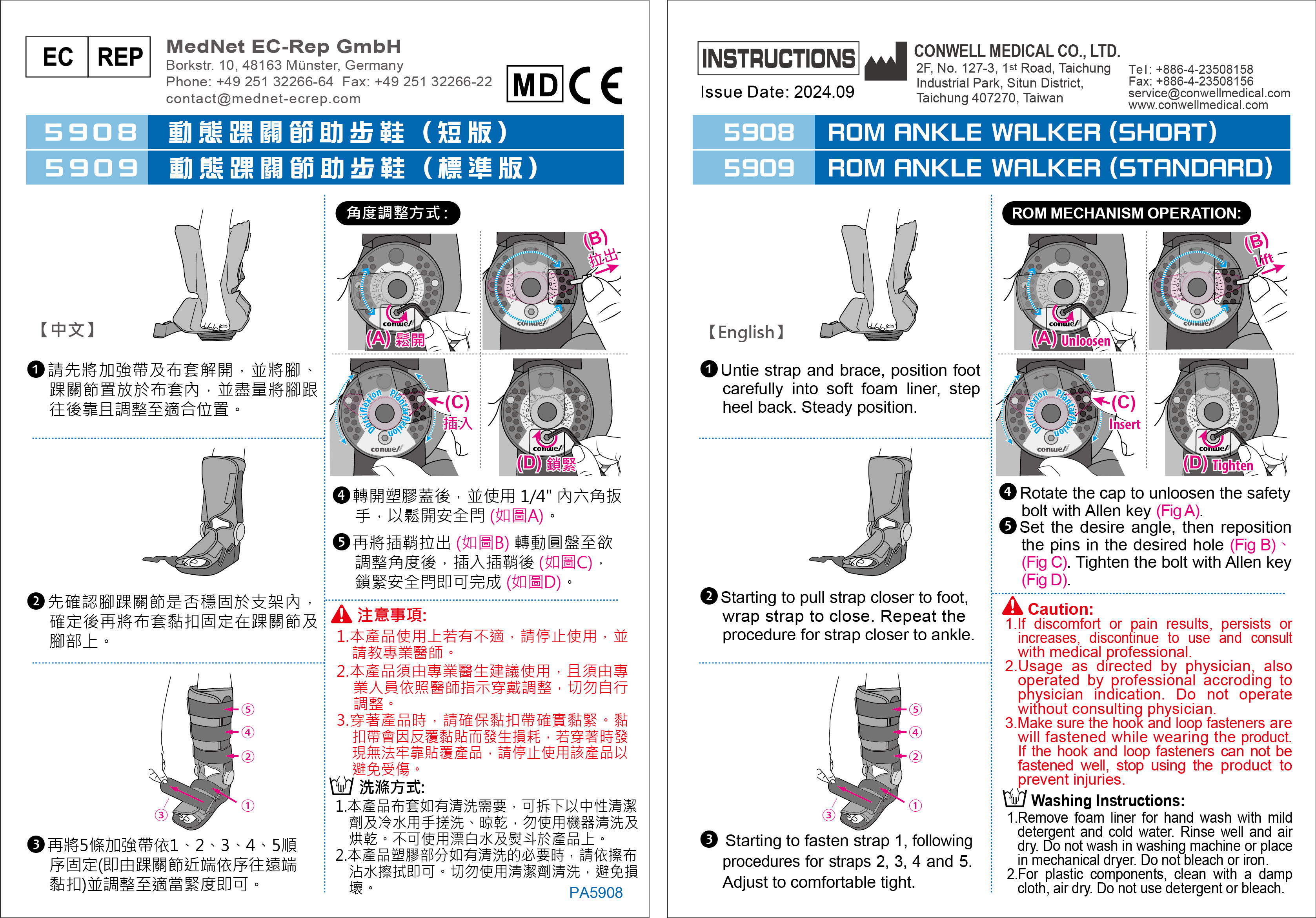

Product Instruction Manualor

THE CONWELL ROM ANKLE WALKER is indicated following trauma or post-operative procedures, where protected range-of-motion is required.

❶Untie strap and brace, position foot carefully into soft foam liner, step heel back. Steady position(Fig A).

❷Starting to pull strap closer to foot, wrap strap to close. Repeat the procedure for strap closer to ankle(Fig B).

❸Starting to fasten strap 1, following procedures for straps 2, 3, 4 and 5. Adjust to comfortable tight (Fig C).


ROM MECHANISM OPERATION:

❹Rotate the cap to unloosen the safety bolt with Allen key (Fig D).

❺Set the desire angle, then reposition the pins in the desired hole (Fig E)、(Fig F). Tighten the bolt with Allen key (Fig G).



Caution:

1. If discomfort or pain results, persists or increases, discontinue use and consult a physician.

2. Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without consulting physician.

3. Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be fastened well. stop using the product to prevent injuries.

Washing Instructions:

Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing machine or place in mechanical dryer. Do not bleach nor iron.
