Conwell Medical Co., Ltd.

51100 DELUXE ADJUSTABLE CERVICAL COLLAR

Indications

■ Stabilize neck
■ Cervical disc herniation
■ Post-cervical spine surgery
■ Traumatic cervical injuries

Features

■ Two-piece shell design for easy to use and provids greater support to the cervical.
■ The height is adiustable.
■ Simple press adjustment design provides fast and easy adjustment.
■ Plush soft-foam wrap for maximum comfort and stability.
■ The large tracheal opening  for easy emergency tracheotomies essential procedures
  • 1
  • 3

SIZE Neck Circumference
ONE SIZE 12 inch - 19 inch                   21 cm - 49 cm

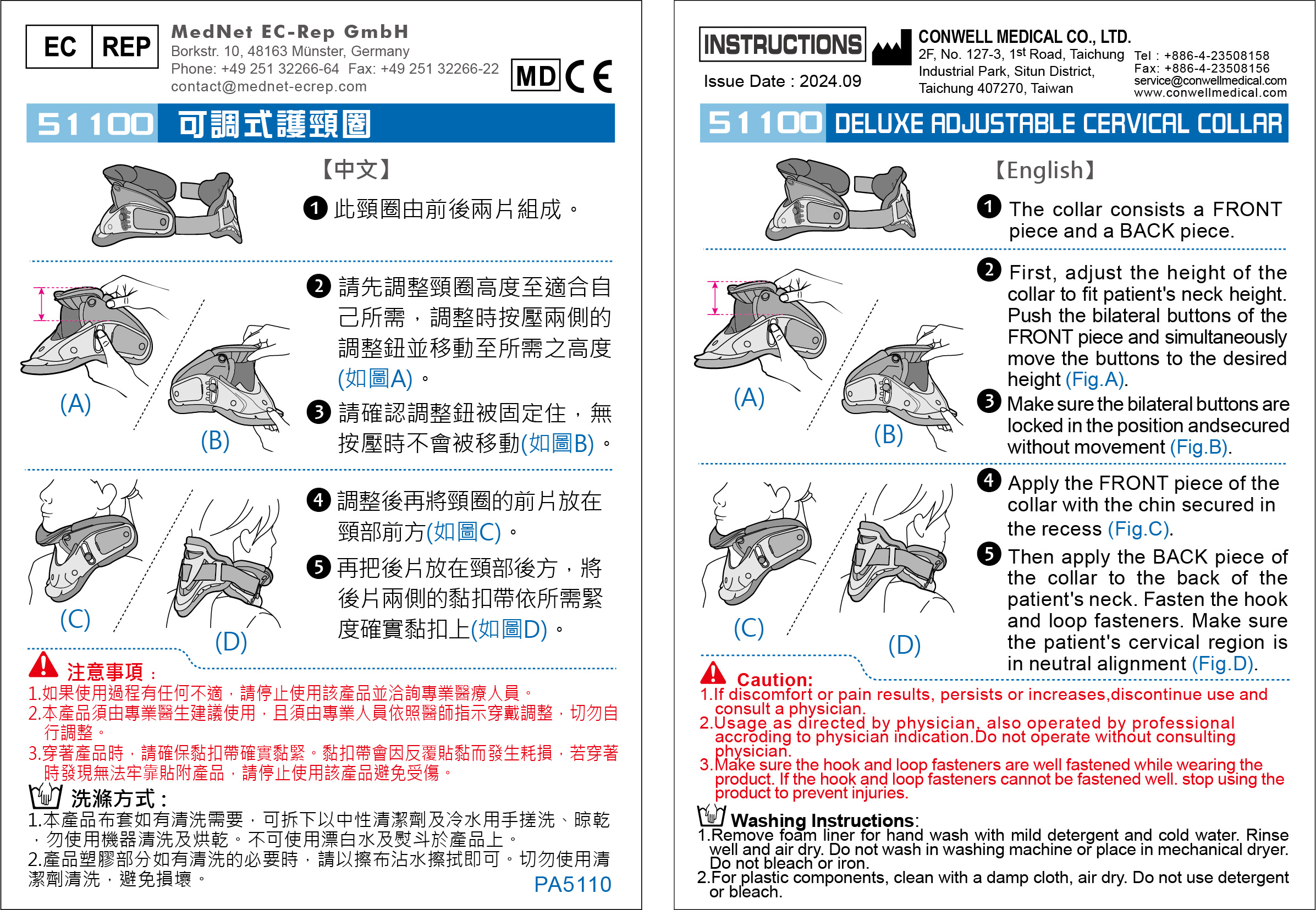

Product Instruction Manualor

THE CONWELL DELUXE ADJUSTABLE CERVICAL COLLAR designs for cervical disc herniation and post-cervical spine surgery.

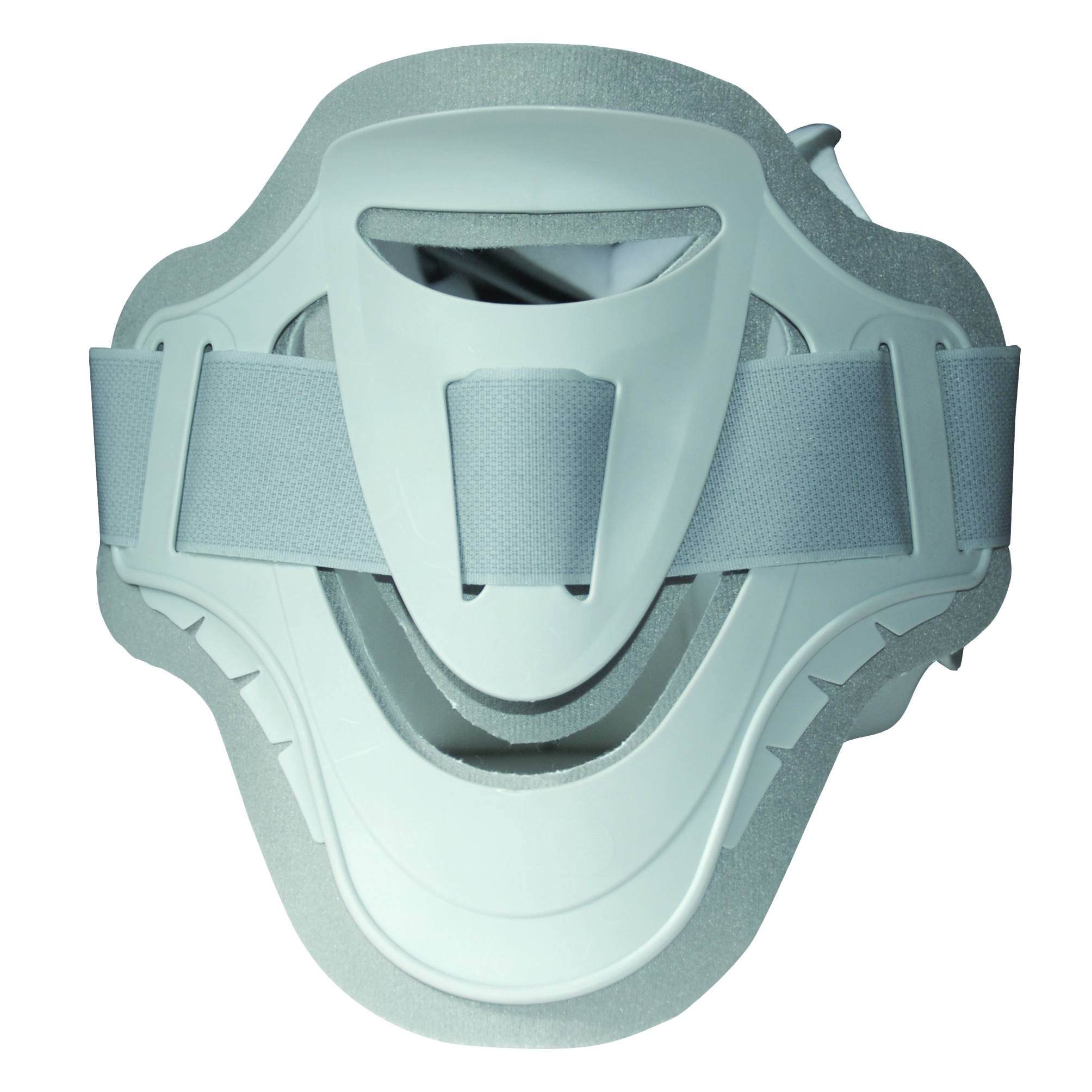

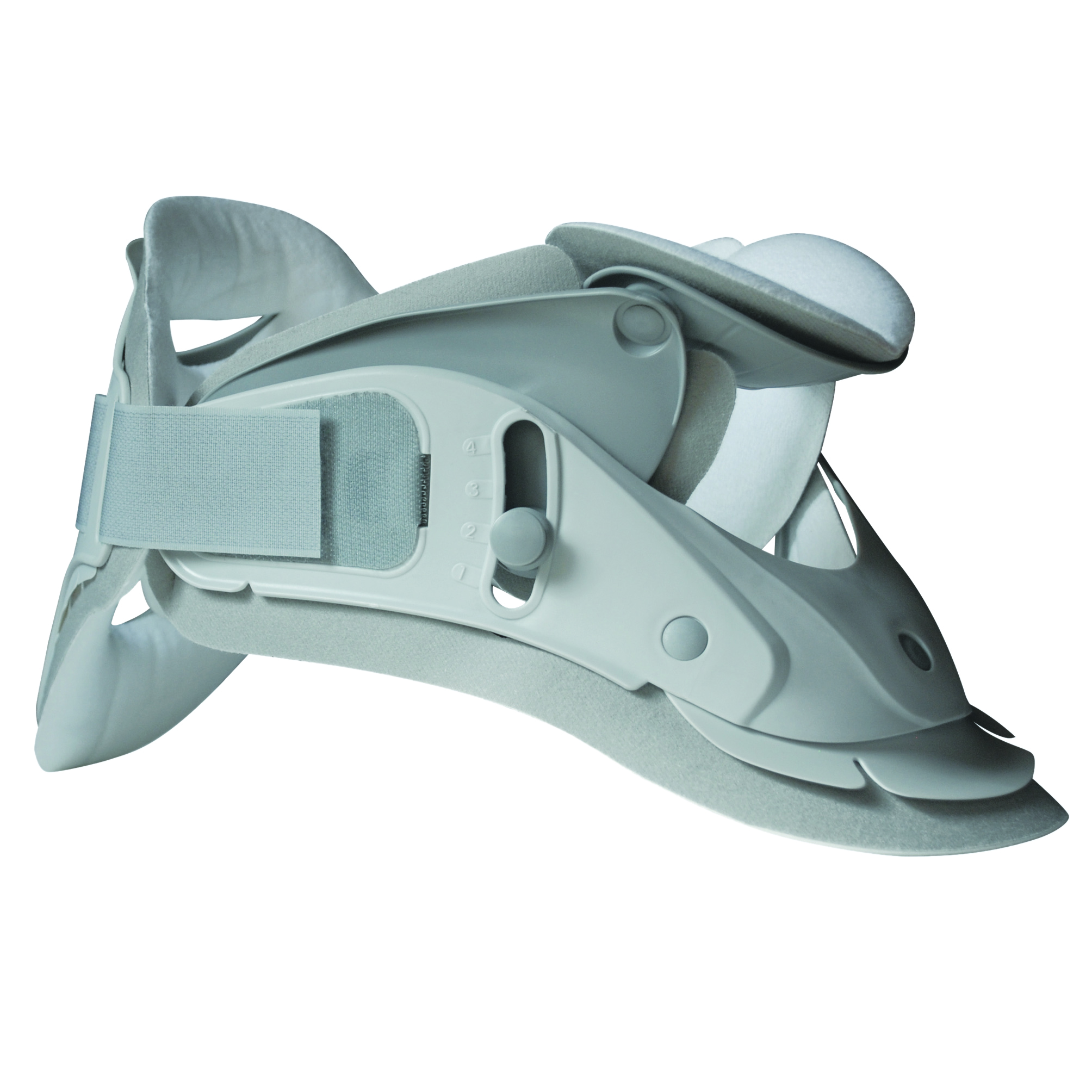

❶ The collar consists a FRONT piece and a BACK piece(Fig. A).

❷ First, adjust the height of the collar to fit patient's neck height. Push the bilateral buttons of the FRONT piece and simultaneously move the buttons to the desired height (Fig. B).

❸ Make sure the bilateral buttons are locked in the position andsecured without movement (Fig. C).

❹ Apply the FRONT piece of the collar with the chin secured in the recess (Fig. D).

❺ Then apply the BACK piece of the collar to the back of the patient's neck. Fasten the hook and loop fasteners. Make sure the patient's cervical region is in neutral alignment (Fig. E).





Caution:

1.If discomfort or pain results, persists or increases,discontinue use and consult a phyician.

2.Usage as directed by physician, also operated by professional accroding to physician indication.Do not operate without consulting physician.

3.Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be fastened well. stop using the product to prevent injuries.

Washing Instructions:

Dip cotton pads in cold water, air dry. Do not use detergent or bleach.
