Conwell Medical Co., Ltd.

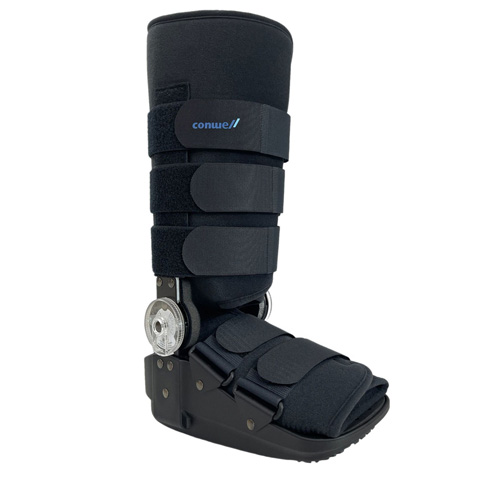

5909 ROM ANKLE WALKER 17"

Indications

■ Following Achilles tendon repairs
■ Stable fractures of the lower leg and ankle
■ Acute ankle sprains
■ Post-op ankle surgery

Features

■ Designed with a wider foot bed for comfort and stability.
■ Provides protected range-of-motion following trauma or surgery.
■ ROM settings between 0°~ 45° plantar-flexion and 0°~ 45°
   dorsi-flexion in 15° increments.
■ Plush soft-foam wrap for maximum comfort and easy to use.
■ Fits left or right foot.
SizeS . M . L . XL

SIZE Max.
Foot Length
US Women's shoe US Men's shoe Euro shoe
S 24 cm  5.5 - 6.5         4 - 5 36 - 37
M 28 cm          7 - 8.5         5.5 - 7 38 - 40
L 32 cm          9 -12  7.5 - 10.5 41 - 44
XL 36 cm        12.5 - 15        11 - 13.5 45 - 48

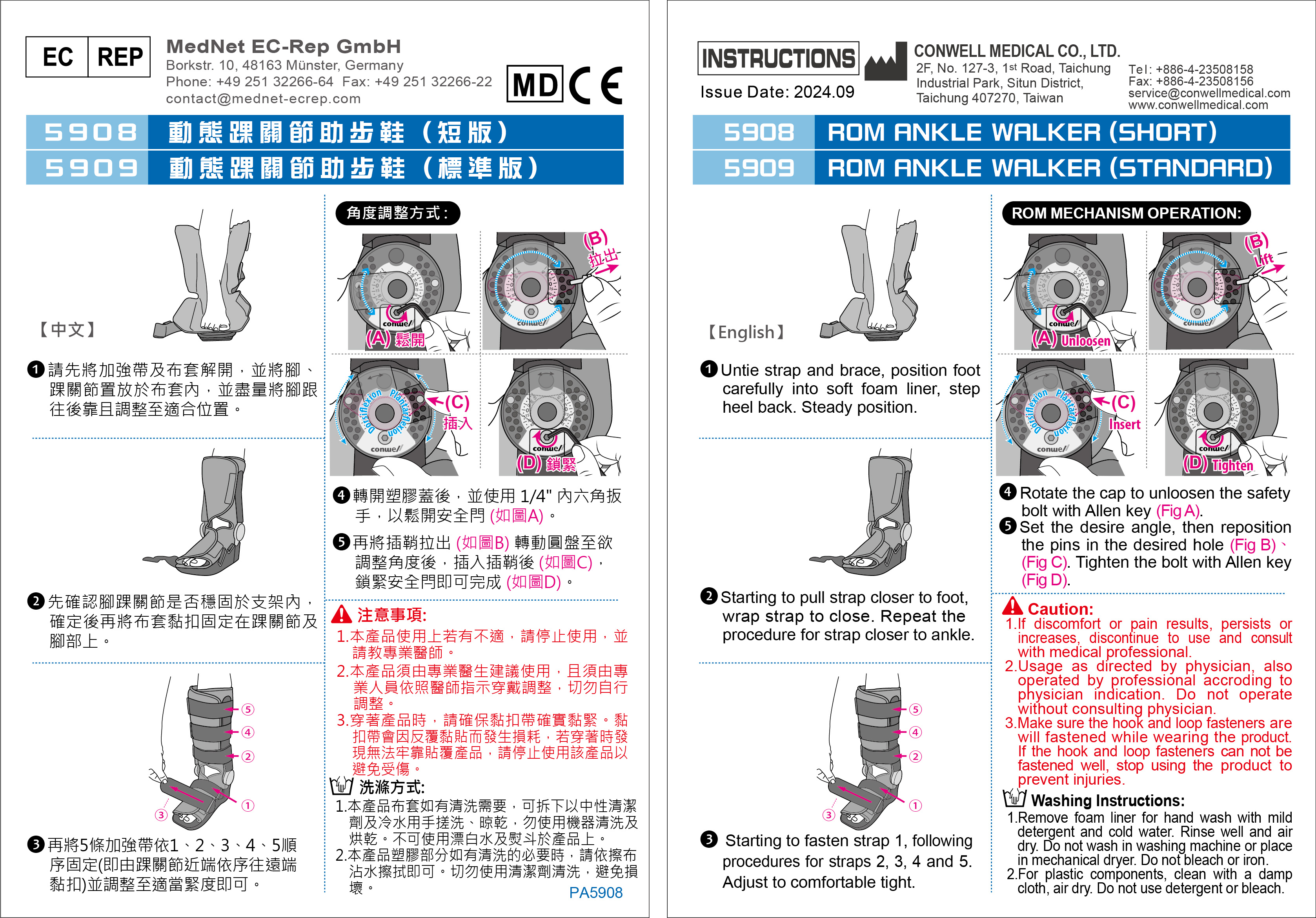

Product Instruction Manualor

THE CONWELL ROM ANKLE WALKER is indicated following trauma or post-operative procedures, where protected range-of-motion is required.

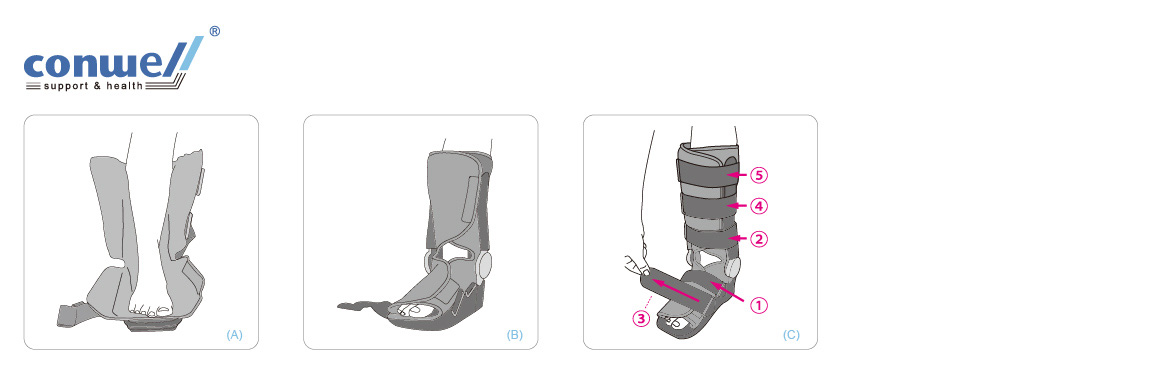

❶Untie strap and brace, position foot carefully into soft foam liner, step heel back. Steady position(Fig A).

❷Starting to pull strap closer to foot, wrap strap to close. Repeat the procedure for strap closer to ankle(Fig B).

❸Starting to fasten strap 1, following procedures for straps 2, 3 and 4. Adjust to comfortable tight (Fig C).


ROM MECHANISM OPERATION:

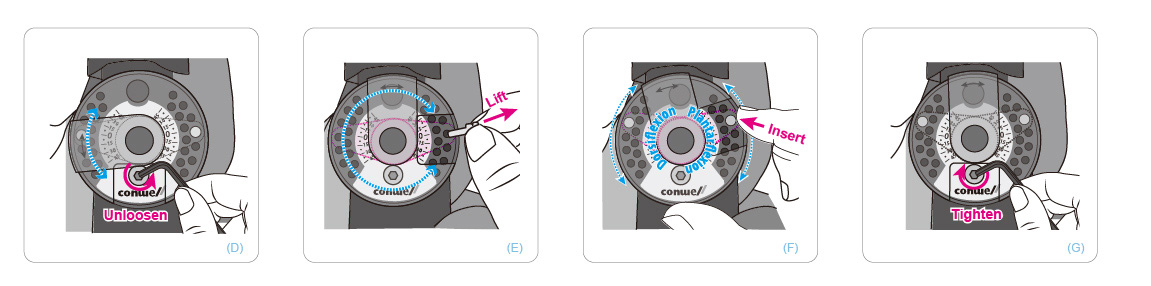

❹Rotate dial wheel cap off by either clockwise or anti-clockwise direction (Fig D).

❺Lift bolt, rotate dial wheel to flexion and extension settings (Fig E). Insert bolt to fix settings (Fig F), close dial wheel cap (Fig G).



Caution:

1. If discomfort or pain results, persists or increases, discontinue to use and consult with medical professional.

2. Consult with doctor for range settings, please do not operate by yourself.

3. Make sure the hook and loop fasteners are will fastened while wearing the product. If the hook and loop fasteners can not be fastened well, stop using the product to prevent injuries.


Washing Instructions:

Remove foam liner for hand wash, using a mild detergent and cold water, air dry. Do not wash in washing machine or place in mechanical dryer.
