Conwell Medical Co., Ltd.

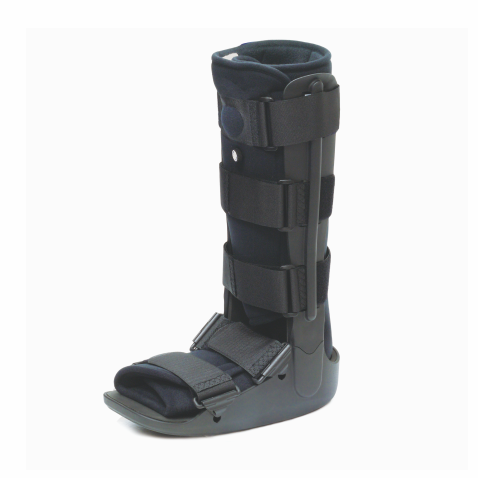

5934 LITE AIR ANKLE WALKER (STANDARD)

Indications

■ Stable fractures of the lower leg and ankle
■ Acute ankle sprains
■ Post-op ankle surgery

Features

■ Designed with a wider foot bed for comfort and stability.
■ The insole is effective of thermolysis to keep foot dry and shock absorption
   capability can reduce ankle  pressure.
■ Air can be easily adjusted to achieve desired compression and custom fit.
■ Rocker bottom helps promote natural gait and reduce plantar pressures.
■ Plush soft-foam wrap for maximum comfort and easy to use.

Size: S . M . L . XL

SIZE Max. Foot Length US Women's shoe US Men's shoe Euro shoe
S 25 cm 6 - 8 4.5 - 7 36 - 40
M 28 cm 8.5 - 11.5 7.5 - 10.5 40 - 44
L 30 cm 11.5 - 13.5 10.5 - 12.5 44 - 47
XL 31 cm > 13.5 > 12.5 > 47

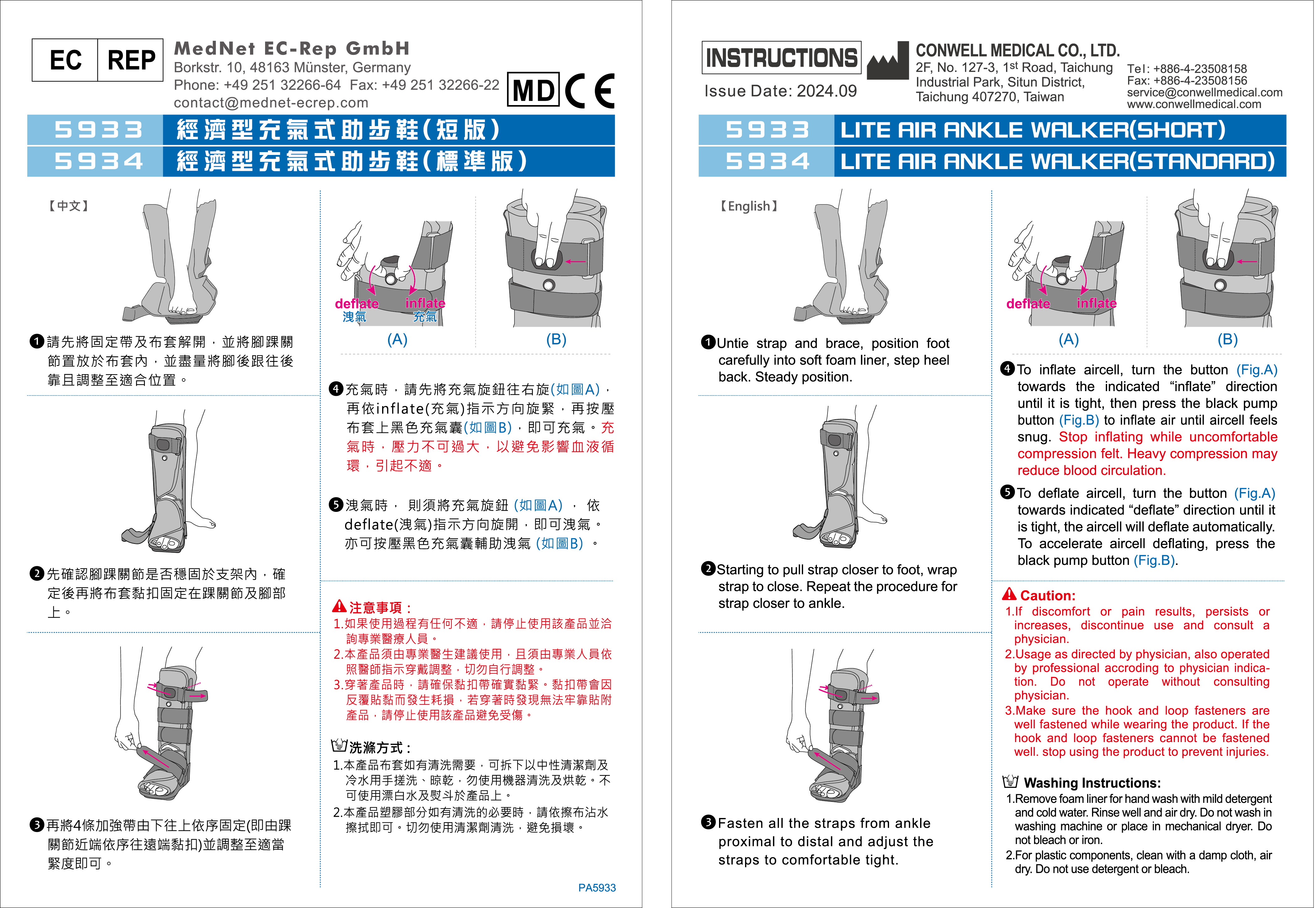

Product Instruction Manualor

THE CONWELL LITE AIR ANKLE WALKER (STANDARD) is indicated following acute ankle sprains, stable fractures and injuries of the foot.

❶Untie strap and brace, position foot carefully into soft foam liner, step heel back. Steady position  (Fig. A).

❷Starting to pull strap closer to foot, wrap strap to close. Repeat the procedure for strap closer to ankle  (Fig. B)​.

❸Fasten all the straps from ankle proximal to distal and adjust the straps to comfortable tight  (Fig. C).

❹To inflate aircell, turn the button (Fig. D) towards the indicated "inflate" direction until it is tight, then press the black pump button (Fig. E) to inflate air until aircell feels snug. Stop inflating while uncomfortable compression felt. Heavy compression may reduce blood circulation.

❺To deflate aircell, turn the button (Fig. D) towards indicated "deflate" direction until it is tight, the aircell will deflate automatically. To accelerate aircell deflating, press the black pump button (Fig. E) .



Caution:

1.If discomfort or pain results, persists or increases, discontinue use and consult a physician.

2.Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without
consulting physician.

3.Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners
cannot be fastened well. stop using the product to prevent injuries.

Washing Instructions:

Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing machine or place in mechanical dryer. Do not bleach nor iron.
